Acratech GXP Ballhead + Locking Lever Clamp 1207

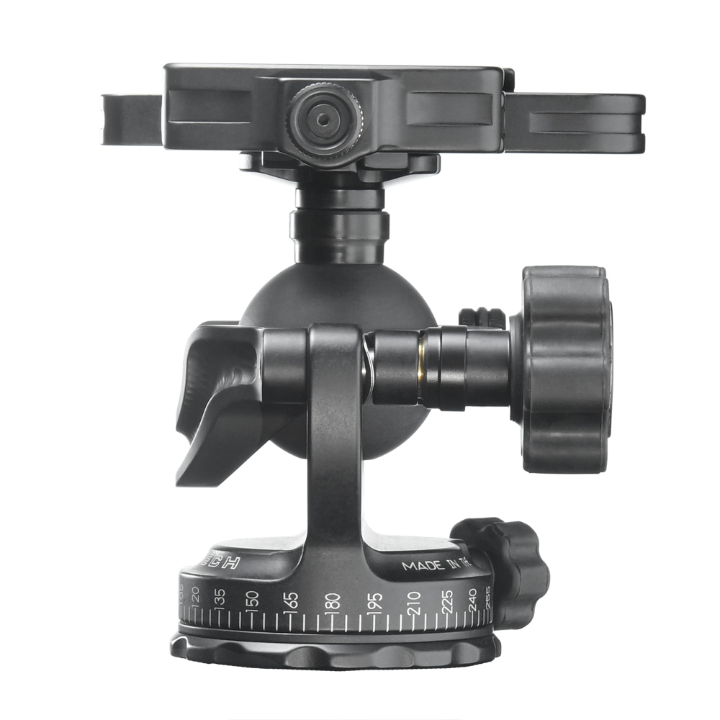

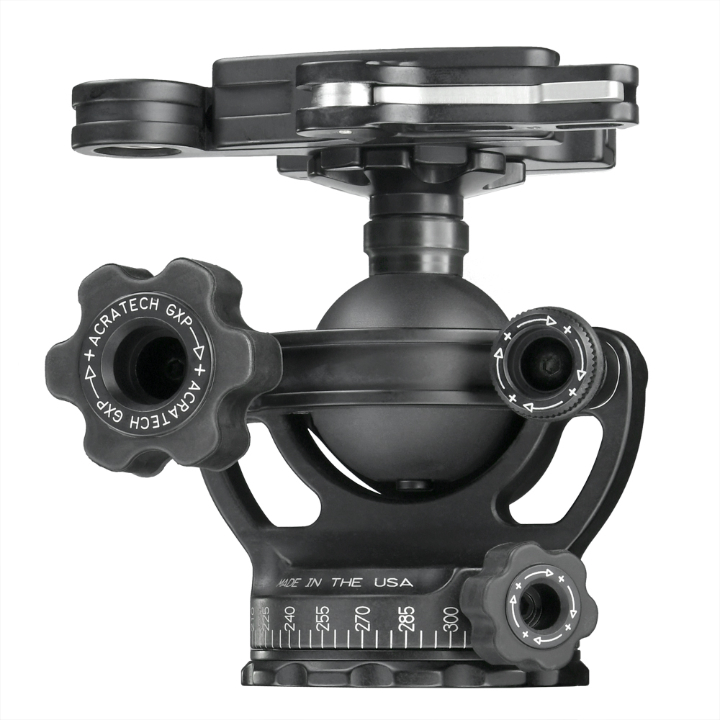

Acratech 1207 GXP Ballhead + Lever Lock Clamp

Get an extra 5% discount on this product, enter code ACRAFIVE at the checkout, plus if you buy an Acratech camera specific QR Plate at the same time you get 5% discount on that also.

The Acratech GP Ballhead has long been recognised as a leader in its class.

The GP even won DP Reviews coveted “Top Pick” and now Acratech is moving competitively forward with their new GXP Ballhead.

The GXP has a wide range of significant new features and it continues the tradition of Acratech’s world-class quality.

New Features of the GXP:

  • Innovative form-follows-function design.
  • Solidly supports an impressive 50.lbs. (double the capacity of the GP)
  • The GXP only weighs bearing a 50:1 load ratio.
  • Large, easy to tighten, high torque lock knob is easy to tighten even with heavy winter gloves on.
  • New extra fine tension adjustment.
  • The unique, panoramic adjustable zero pointer makes it easy to return to your starting point when you are shooting a sequence of images.
  • The quick release clamp has deep side notches for more clearance with other manufacturers stop screws.
  • The level on the quick release clamp is clearly visible even with your camera attached to the clamp.
  • The quick release clamp jaws are more pointed to be more compatible with some manufactures quick release plates with less pointed dovetails.
  • The locking lever clamp has a safety zone so the first 25% of the levers motion will not allow your camera to release.

Features of the GXP that carry on the GP tradition:

  • The patented gimbal feature makes it quick and easy to track follow moving objects with ease.
  • With GPX in panoramic mode you can use the ball to level the panning surface and you can do accurate stitched panoramic images without a levelling base.
  • Open structure dirt and moisture falls through instead of getting trapped inside like a conventional ball-head.
  • Precision CNC machined from aircraft quality aluminium and stainless steel.
  • Made in the USA in Acratech’s Pomona, California facility.
  • 10 Year warranty.
  • Fits all Arca-Swiss compatible quick release plates.
  • Fits all standard tripods (1/4-20 and 3/8-16 threads)
  • Beautiful satin black anodised finish
  • Solid precision feel
  • The knobs are secured so they cannot vibrate loose and fall off.
  • Oil-less and greaseless ball will not attract or hold dirt and debris.

Great YouTube review of the GXP here by David Akoubian

Excellent blog post review of the GXP by Landscape Photographer Jack Lodge


  • Max Weight Load: 50lbs (22.6kg)
  • Ball Diameter: 1.5” (38mm)
  • Tripod Thread: 3/8-16 (includes 1/4-20 reducer bushing)
  • Height: 4.2” (106mm)
  • Length: 3.62” (92mm)
  • Width: 3.17” (81mm)
  • Base Diameter: 2.375” (60mm)
  • Weight: 1 lbs. (.45kg)
