Wimberley offer a line of Arca-Swiss style quick-release plates for collared lenses.
Their plates have important innovative features that distinguish them from other plates on the market.
To select the correct plate for your system we recommend you first visit the Wimberley website and view the “Finding the right plate” tab as the fitting list of lenses has become pretty long and constantly changes.
We would not like to introduce any errors by copying them to our web page.
Sorry for the slight inconvenience but we always prefer you to select the correct plate first time if possible !
click the link: Wimberley Plate Recommendation List
Dual Safety Stops
Safety stops at the front and back of Wimberley Plates keep your expensive lens from accidentally slipping out of the quick-release clamp.
If you wish to use only one or neither of these stops, simply remove them with the hex key provided.
Note to Arca-Swiss Z1 users: The safety-stop security feature of Wimberley Plates does not work when used with the Arca-Swiss “double-decker” clamp.
Flash Bracket Versatility
Wimberley Plates are designed to accept RRS & Kirk flash brackets as well as their own quick-release flash brackets.
The unique double-dovetail design allows you to attach Wimberley quick-release flash brackets to the upper or lower surface of the plate.

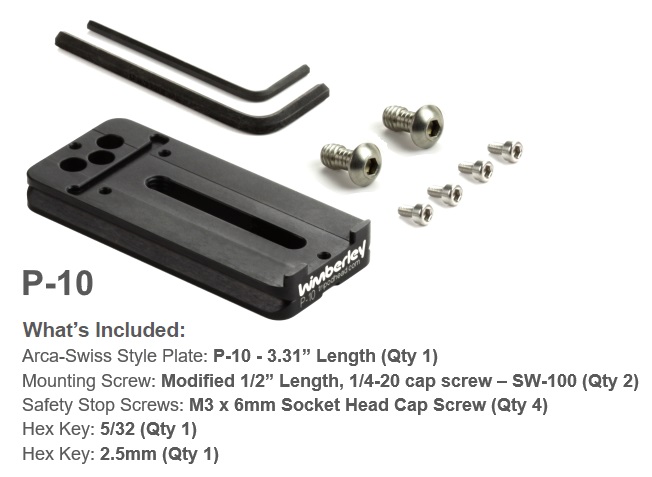

The P-10 plate has anti-twist nubs at the back of the plate.
These help to keep the plate from twisting if it is mounted with only one fastener.
The unique dual-nub design (as opposed to a single continuous flange) provides better performance when butted against a curved surface.
P-10 Lens Plate Specifications
