Bob Rigby Photographic are the official UK Importers & Distributors of Wimberley products.

Wimberley AP-555 Lens Replacement Foot


Low Profile Replacement Foot for Nikon Lenses



Wimberley custom made low-profile replacement feet replace the

factory foot on the rotation collar of your lens and also serve as the
Arca-Swiss style quick release plate for your lens.

No additional quick-release plate is needed.

It makes your lens handle better on a conventional tripod head, such as a ball head, and also makes it easier to pack.

Using a Wimberley replacement foot on your large lens decreases the
overall height of the lens, lowering the center of gravity so that it
achieves proper balance when used on a gimbal head such as the Wimberley
Head or the Sidekick.

Replacement feet are specifically designed to allow for optimal
gimbal head performance and may be required when using specific lenses
on The Wimberley Sidekick.

The replacement feet are milled to slide right into an Arca-Swiss
style quick-release clamp, and also have 1/4” and 3/8” tapped holes for
mounting to non quick release tripod heads and monopods.

They have the same dual safety stops and flash bracket compatibility as Wimberley lens plates.

All tools needed to replace your existing lens foot are included.

Product Information Sheet:


AP-555 Specifications:

For Nikon:

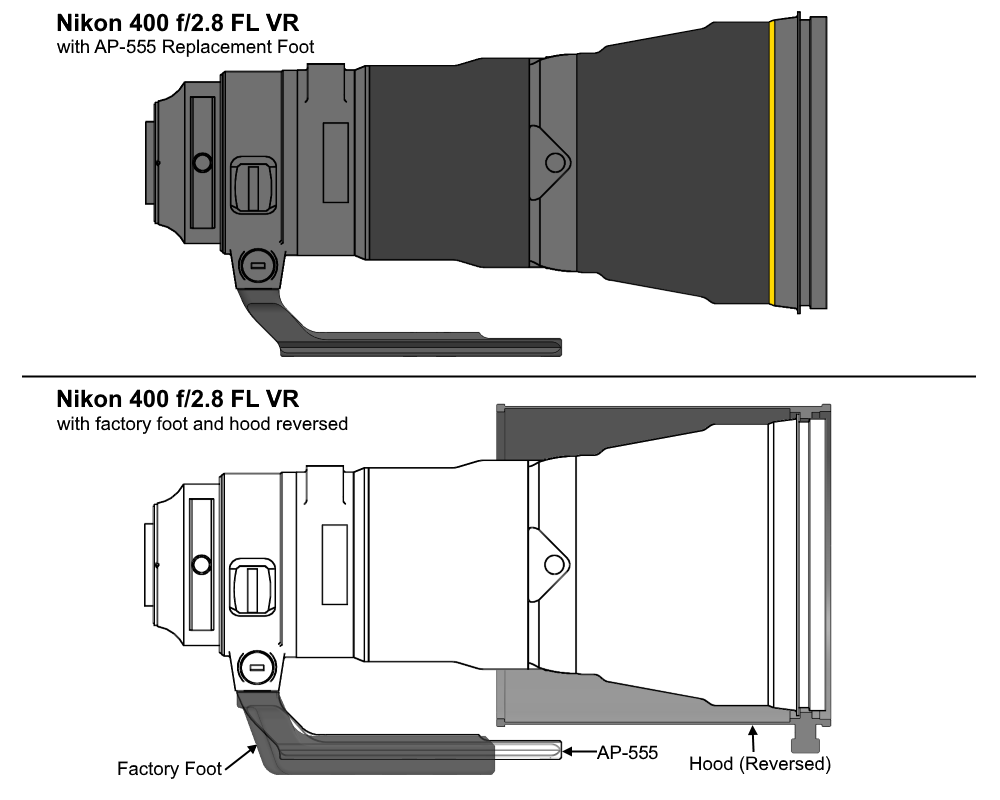

  • 400 f/2.8 E FL VR

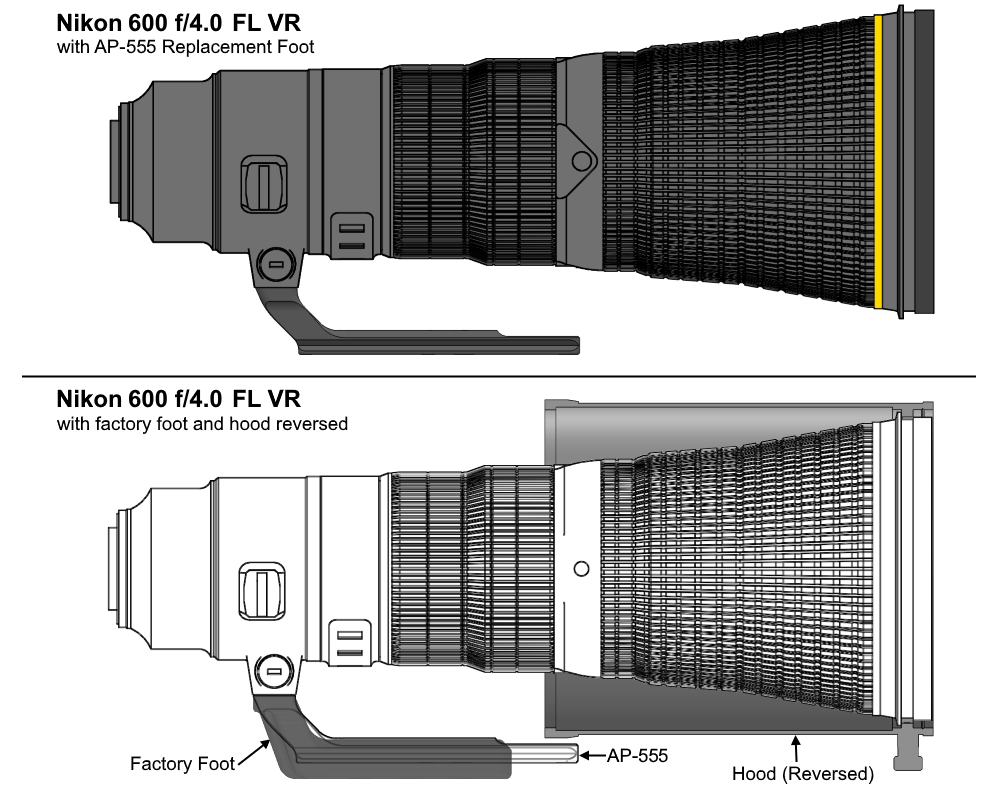

  • 600 f/4 E FL ED VR

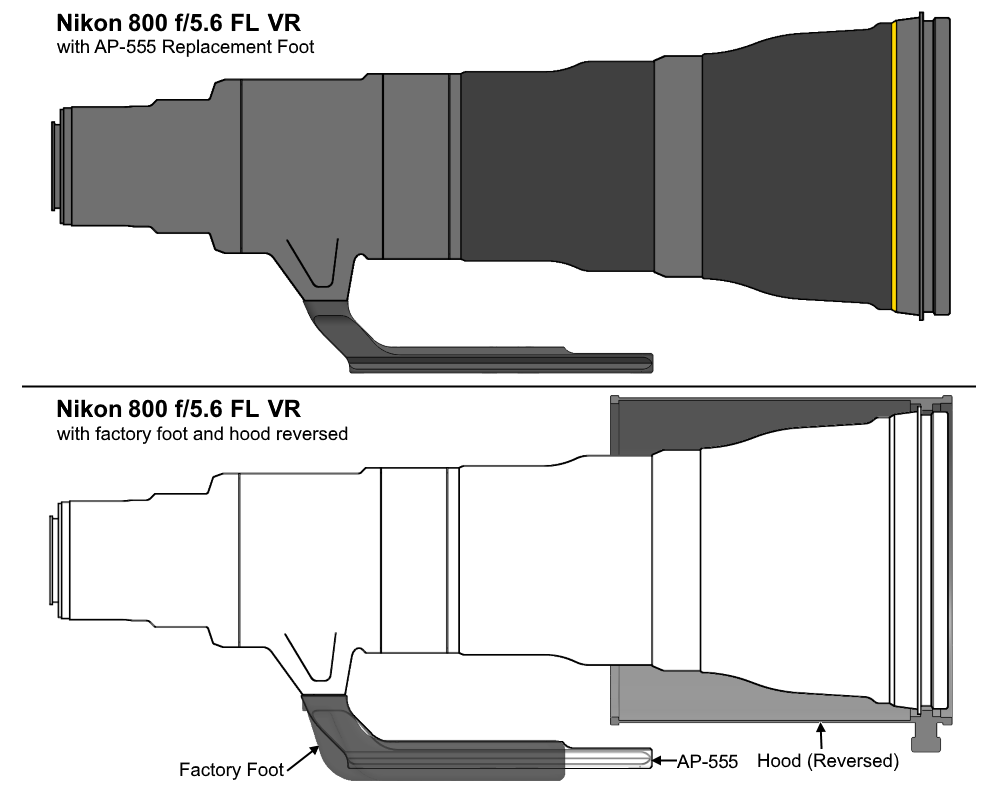

  • 800 f/5.6 E FL ED VR

Lowers the overall height of these lenses by 3/8”

Dimensions:

  • (Overall L x W x H) 6.75 x 1.7 x 1.7 in

Weight:

  • 7.6 oz (plate, mounting screws, & safety-stop screws)
