Wimberley AP-502 Lens Replacement Foot

click to enlarge

Buy Now   £ 108

The AP-502 replaces the stock foot on Nikon Lenses.

The AP-502 is precision machined to slide right into an Arca-Swiss style quick-release clamp.

It also has 1/4" and 3/8" tapped holes for mounting to non-quick-release tripod heads and monopods.

All replacement feet feature the same dual safety stops and flash bracket compatibility as our lens plates.

N.B. Arca Swiss profile is not compatible with most Manfrotto or Gitzo Clamps.

For use on the following Lenses :

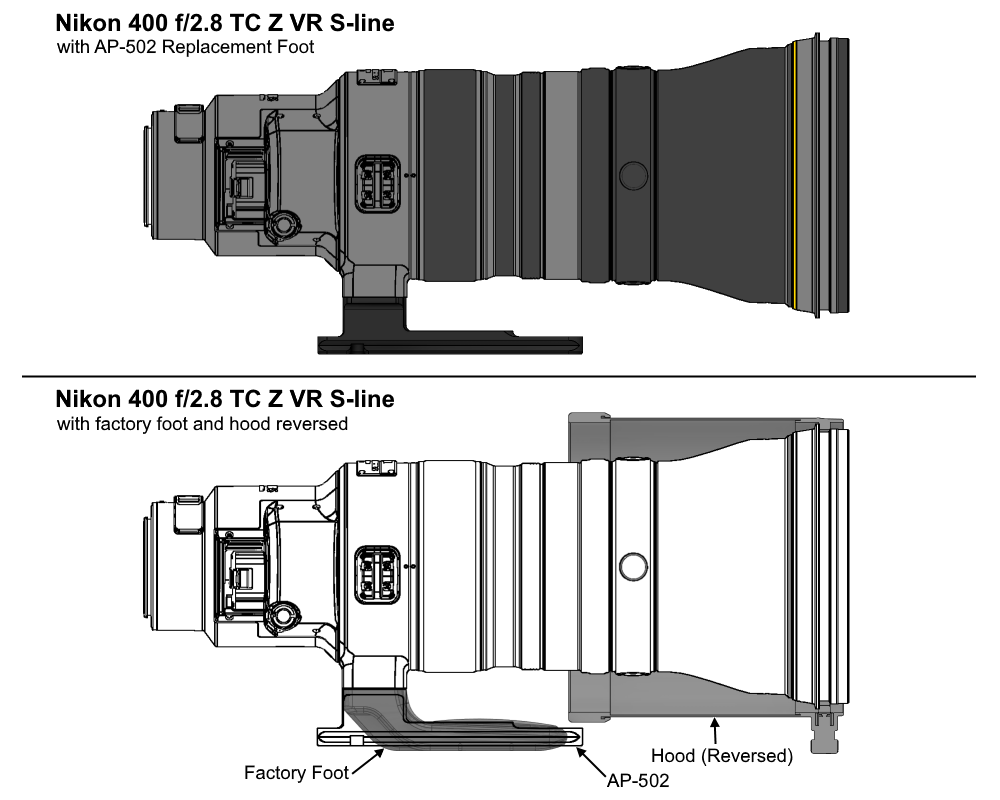

• 400 f/2.8 TC Z VR S
• 600 f/4 TC Z VR S

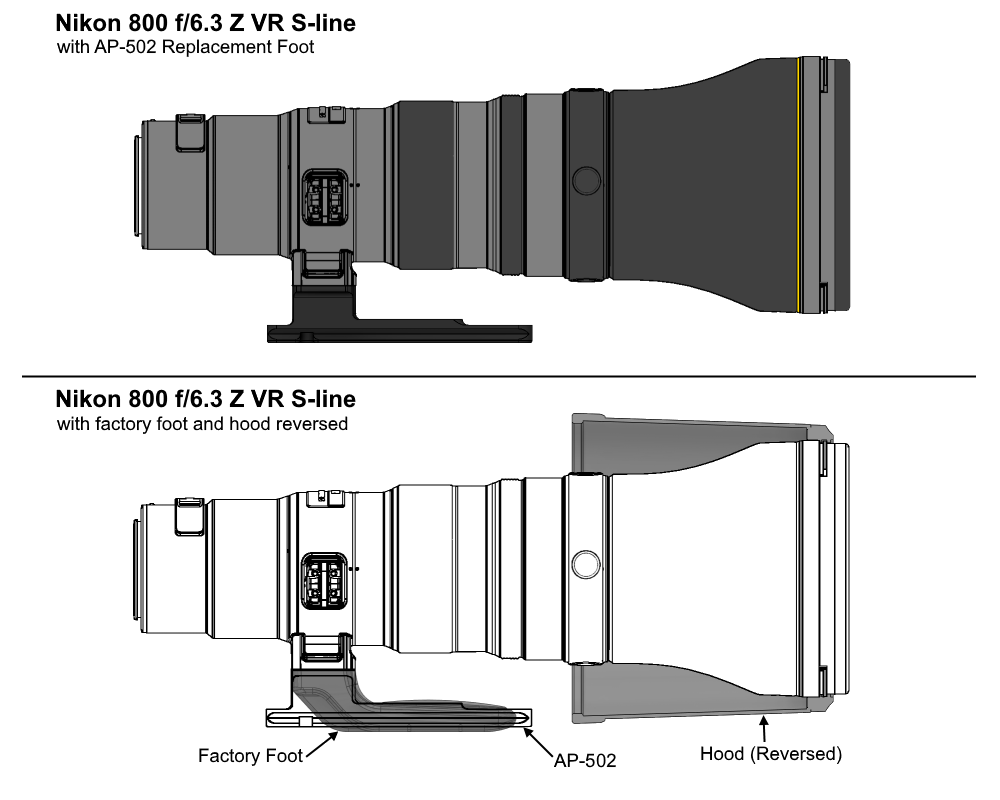

• 800 f/6.3 Z VR S

What's Included :

AP-502 Arca-Swiss Style replacement lens foot (Qty 1)
Mounting Screws – M4 x 10mm Socket Cap Screw (Qty 4)
Safety Stop Screws - M3 x 6mm Socket Head Cap Screw (Qty 2)
Hex Key – 3mm T-Handle (Qty 1)
Hex Key – 2.5mm (Qty 1)


Dimensions (Overall L x W x H): 5.6 x 1.6 x 1.2 in
Weight: 5.7 Oz (plate, mounting screw, safety-stop screws)
Materials: Anodised 6061 Aluminium, Stainless Steel

Product Information Sheet:

• Download here
